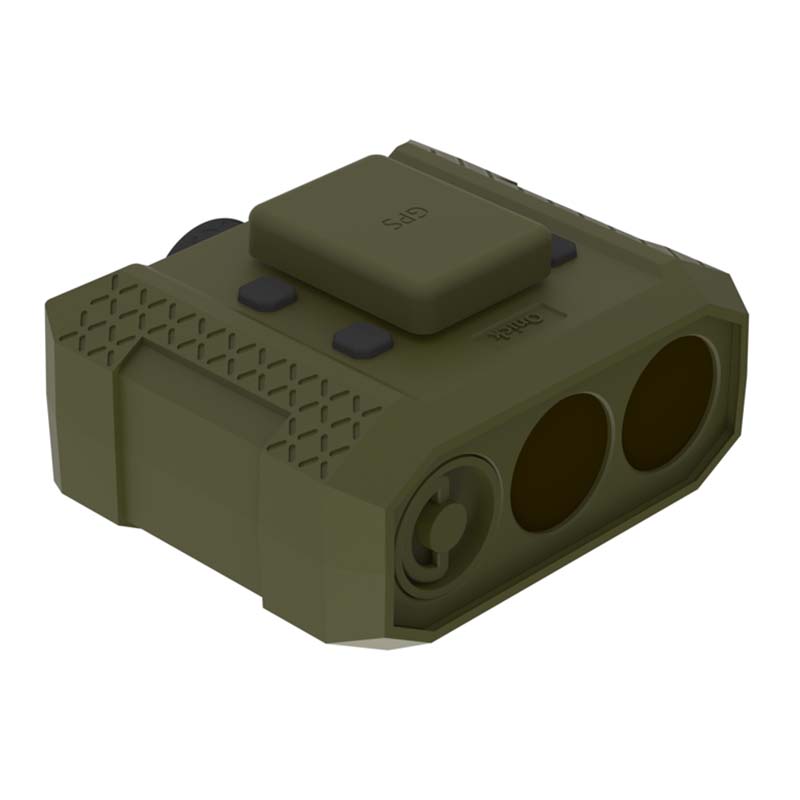

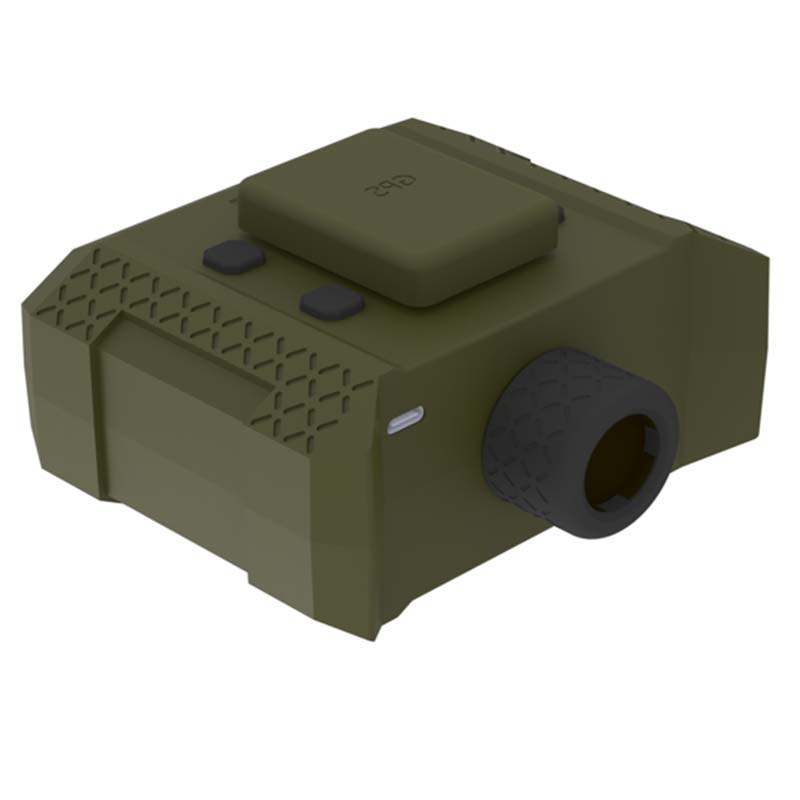

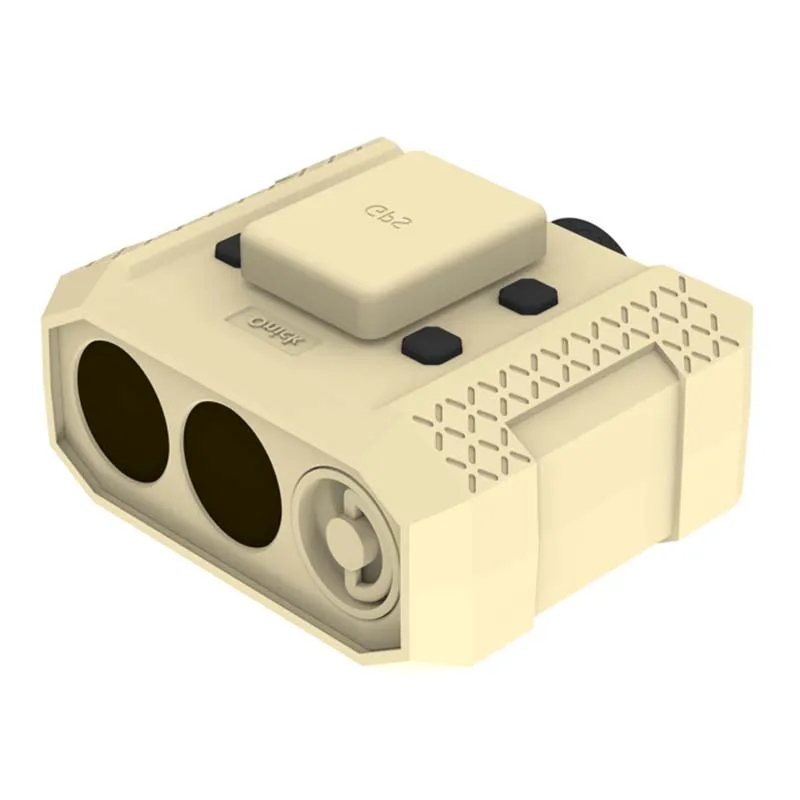

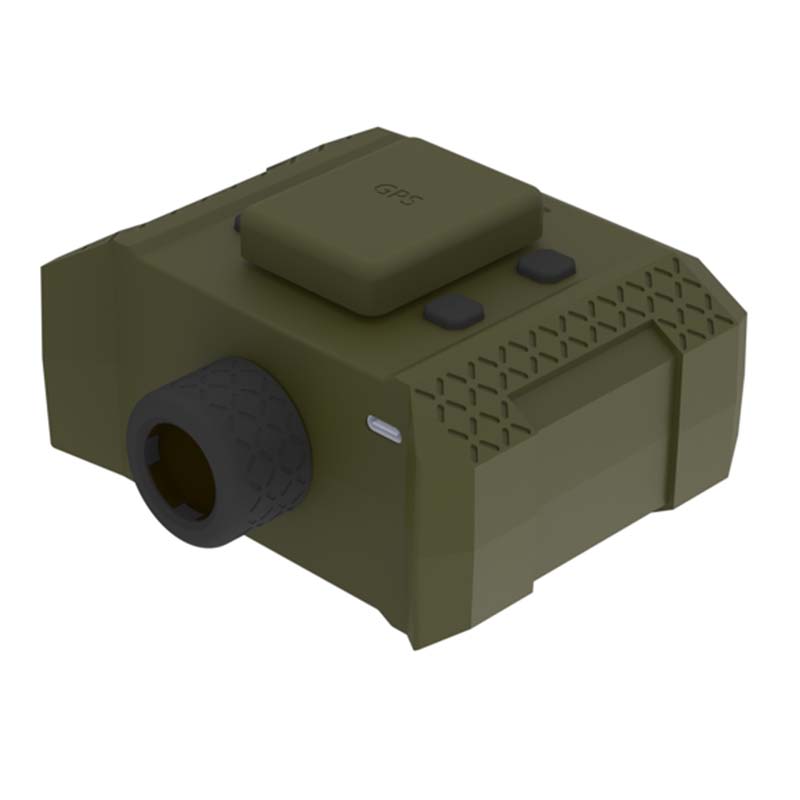

5000X all-round multi-function long-distance high-precision laser rangefinder
Onick Optics has launched another masterpiece! Onick 5000X is a full-range multifunctional long-distance portable laser rangefinder with laser distance measurement, height measurement, angle measurement, speed measurement, span (any two points in space), GPS function (detachable GPS), current point, target point positioning, air pressure, temperature, area, volume measurement, Bluetooth, USB, Typec interface and other powerful functions. The performance and accuracy can meet your high demands in
€0
Product Details
Product Details
All-round multi-function long-distance high-precision laser rangefinder
Onick Optics has launched another masterpiece! Onick 5000X is a full-range multifunctional long-distance portable laser rangefinder with laser distance measurement, height measurement, angle measurement, speed measurement, span (any two points in space), GPS function (detachable GPS), current point, target point positioning, air pressure, temperature, area, volume measurement, Bluetooth, USB, Typec interface and other powerful functions. The performance and accuracy can meet your high demands in various working environments!
At the same time, Onick 5000X uses a military-grade metal shell while ensuring the excellent use function of the product. It is durable, compact and lightweight. 5000X has a transparent and clear OLED LCD two-color display with black and red font switching. The red font is used in a darker environment, and you can read accurate measurement data while aiming at the target. The innovative lens coating and high light transmittance make the observation effect clearer.
Product features:
1. Measuring distance 5000m, accuracy 0.1m
2. Powerful functions, ranging, height measurement, angle measurement, speed measurement, span (any two points in space), sag measurement
3. With azimuth and GPS function (detachable GPS), display current point, target point positioning
4. Temperature, humidity detection, air pressure and altitude detection, area and volume measurement
5. With Bluetooth, support APP data transmission, APP control measurement, USB Typec interface, OLED black, red two-color display
6. Ergonomic design, compact and lightweight
Application areas:
Electric power construction maintenance, power supply site inspection, line inspection (cable height), power line selection survey and design, forestry survey, security and police use, geological exploration, field hunting, railway construction survey, installation survey, high-rise building monitoring, high-speed rail passenger line track construction, water conservancy and hydropower survey, water conservancy river survey, oil pipeline, archaeological research, mine survey, railway line selection, land and resources survey, etc.
| Model | Onick 5000X |
| Range | 0m-5000m |
| Distance accuracy | ±0.1m (15-300m) ±0.2m (300-600m) ±0.3m (600-1000m) ±1m (1000-5000m) |
| Distance display | built-in OLCD display |
| Magnification | 8.0X |
| Field of view | 6.8° |
| Kilometer field of view | 110m |
| Eyepiece aperture | 22mm |
| Exit pupil diameter | 4.2mm |
| Objective & emission aperture | 32mm |
| Receiving aperture | 32mm |
| Exit pupil distance | 24mm |
| Clarity adjustment | Yes |
| Diopter range (vision) | ± 5dpt |
| Transmittance | 85% |
| Coating | Multi-layer optical coating |
| Objective lens focus compensation | Yes |
| Focus method | Eyepiece focus |
| Laser eye safety | Yes |
| Vertical angle | ±0.1° |
| Azimuth | ±1° |
| Temperature measurement range | -45°-130° |
| Data storage | 100 groups |
| Dynamic speed measurement | 18-300km/h |
| Static speed measurement | 0-300km/h |
| Azimuth range | 0 degrees-360 degrees |
| Vertical angle range | -90 degrees +90 degrees |
| Charging method | USB Type interface |
| Battery life | >3000h |
| Working temperature | -20C to +60C |
| Storage temperature | -40C to +80 |
| Tripod interface | Yes |
| Size | 115*105*65 mm |
| Measurement function | horizontal distance, straight distance, vertical distance, angle measurement, two-point height measurement, three-point height measurement, distance between any two points in space, horizontal distance between two points in space, azimuth measurement, speed measurement, volume area measurement, Bluetooth APP data transmission, temperature and humidity, sag measurement, air pressure altitude, GPS positioning |
| Tripod | Support |
| Power supply | 18650 2000mah, 3.7v |
