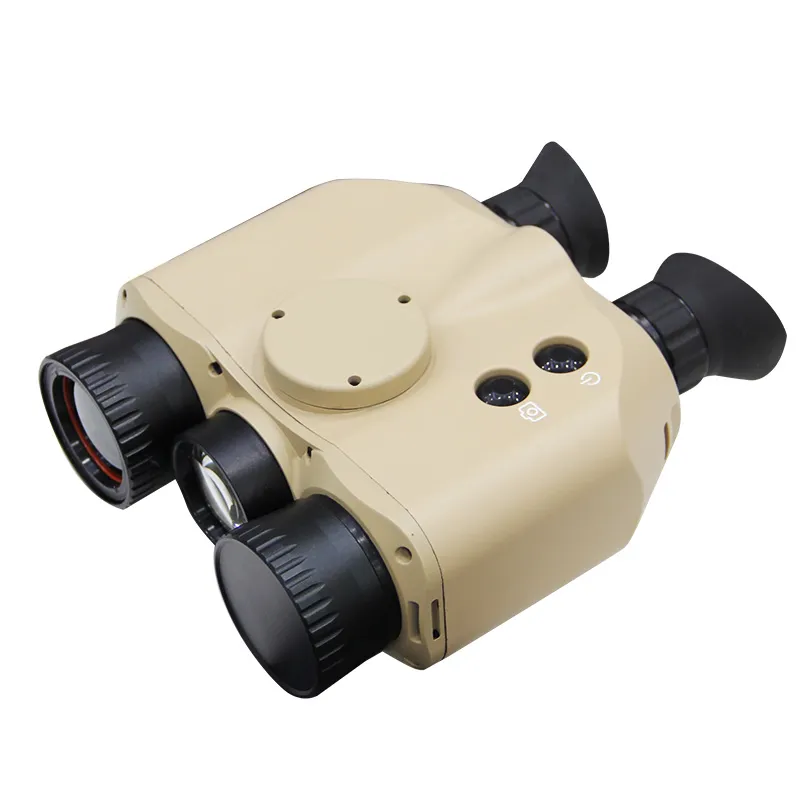

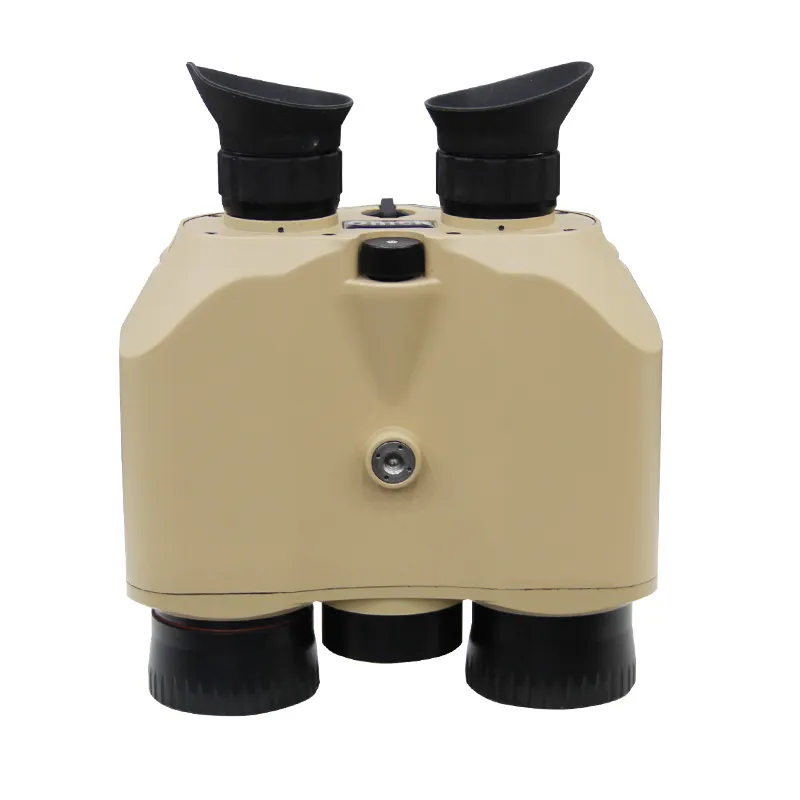

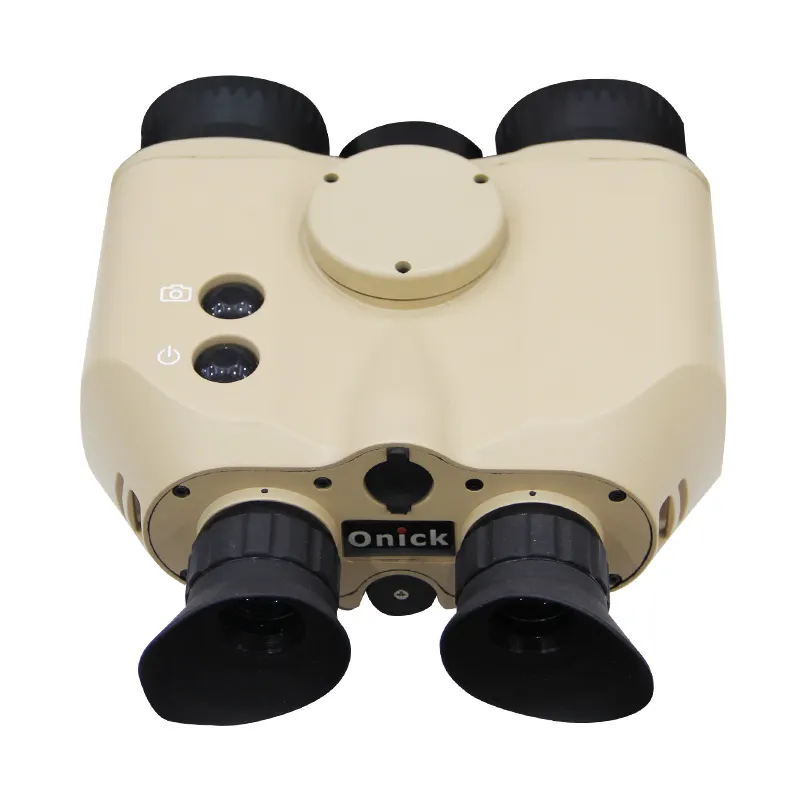

Re620 Binocular Fusion Thermal Imager

Onick RE620 fusion thermal imaging handheld reconnaissance instrument follows the classic binocular telescope design, which can greatly reduce the fatigue of long-term observation. It adopts high-performance 640×512 vanadium oxide detector and low-light visible light camera dual light fusion, with high sensitivity, and clear infrared images of moving targets.
€0
Product Details
Product Details

Onick RE620 fusion thermal imaging handheld reconnaissance instrument follows the classic binocular telescope design, which can greatly reduce the fatigue of long-term observation. It adopts high-performance 640×512 vanadium oxide detector and low-light visible light camera dual light fusion, with high sensitivity, and clear infrared images of moving targets. And full-color OLED 1024X768 high-definition display, providing clear imaging fusion image effect regardless of day or night, bringing you clear image effect and immersive observation experience. Supports multiple observation modes such as infrared, low light, fusion black and white, fusion color, etc.

Product features:

1. It has the advantages of both low-light and thermal imaging, and has a variety of observation modes to choose from, which can better meet the observation needs of different scenes and different personnel;

2. The observed information is richer, the details are more perfect, the scene is easier to understand, and the effective detection and identification distance is farther;

3. The observed target is more obvious, which is conducive to faster and more accurate detection of targets under concealed camouflage backgrounds, especially the image fusion color night vision mode;

4. The observed image is more natural and more in line with human eye habits, which can significantly improve the target recognition performance of the human eye and reduce fatigue;

5. It meets the needs of all-weather operations and can be observed and used in the dark, completely dark and closed environments, and in severe weather conditions;

6. It is small in size and light in weight, comfortable and convenient to use, has a long continuous working time, and good environmental adaptability;

Application areas:

Onick RE620 binocular fusion thermal imaging long-distance target detection weapon. It has the ability to quickly and automatically lock the target in severe climates such as smoke, fog, rain, and snow, can record and take pictures, can record and restore the scene, and can be used in patrol, law enforcement, search and rescue, drug control and anti-smuggling and other scenes. It is suitable for special forces such as public security, armed police, and the military to achieve effective all-weather observation of specific areas or targets, and quickly discover, identify, and track targets of concern; it is also suitable for industries such as fire protection, electricity, and petroleum to achieve day and night monitoring of specific areas or equipment.

ser ranger binoculars thermal imaging night vision RE620 remote detection infrared thermal imager with 50mm Lens
Resolution
640×512
Pixel spacing
17μm
NETD
≤45mK@25ºC
Operating band
8μm~14μm
Frame frequency
25Hz
Lens
37.8mm
Focusing
Manual operation
Low light (CCD) and lens
Resolution
800×600
Pixel spacing
18μm
Frame frequency
25Hz
Lens
40mm
Focusing
prime lens
Image display
Display screen
0.39″OLED,resolution ratio 1024×768
Zoom
2X
Image adjustment
Target identification, brightness, contrast, automatic/manual shutter correction, polarity, image amplification
Detection and identification range
Detection range
Person(1.7×0.5m):1200m
Vehicle(2.3m):1700m
Recognition distance
Person(1.7×0.5m):400m
Vehicle(2.3m):560m
File storage
Image storage
BMP File storage
Video storage
AVI Video File storage
Memory card
32G TF Card
Port
Video output
Q9
Data interface
USB
Serial port
RS232
Tripod interface
Standard, 1/4 inch
Others
Visual adjustment range
-4~+4°
Orientation
electronic compass
Location
Beidou or GPS
Wireless transmission
WIFI
Power supply
Battery
Two 18650 rechargeable lithium batteries
Power button
Hold down for about 5 seconds
Start-up time
About 10 seconds
Continuous working time
≥3.5h
Environmental suitability
Operating temperature
-40ºC~+50ºC
Storage temperature
-45ºC~+60ºC
Class of protection
IP67
Appearance
Weight
≤1.30kg(Includes 2 18650 lithium batteries)
Dimension
≤ 205mm×160mm×70mm
